  • Electric Door Lock
  • Electric Door Lock
FCL-918E/M Electric Door Lock
The electric door lock is currently the most advanced and most expensive product at home and abroad.

FC-918 series access control is a electric door lock designed for public security and access control systems. The product supports a variety of door opening methods: support key, ID/Mifare (radio frequency card), wireless remote control to open the door, support TTL232 or RS485 communication networking, and also support infrared programmers to issue cards and delete cards, set parameters, and program data management for locks.

Product Introduction

Burglar RFID Lock

FC-918 series access control is a electric door lock designed for public security and access control systems. The product supports a variety of door opening methods: support key, ID/Mifare (radio frequency card), wireless remote control to open the door, support TTL232 or RS485 communication networking, and also support infrared programmers to issue and delete cards, set parameters, and program data management for locks. The electric door lock is currently a more advanced and relatively expensive card smart lock product.

The access control electic door lock is a multi-functional intelligent anti-theft card lock. It is developed with new technology and flexibly integrates the access control circuit and the electric lock, which is convenient for installation and use. The lock uses an infrared programmer to program the electric lock and issue the card. To delete the card, simply send the infrared remote control to the radio frequency card, wireless remote control and mechanical key to open the door.

This product is recommended for use in rental houses, communities, school dormitories, etc. It can help better management personnel enter and exit, prevent unrelated personnel from entering and leaving at will, and improve safety management.

Product Parameters

Working Voltage: DC 9-15V

Working Current: < 500mA

Working Temperature: -0℃- +65℃

Working Humidity: 10-90%

Card Reading Speed: <0.2s

Reading Distance: 0-80MM

User Capacity: 1,000 groups (Can be extended to 60,000 people)

Records Capacity: 1,000 groups (Can be extended to 30,000)

Reading Type: Support ID card/Mifare Card

Wireless Remote Control: Support 433MHZ wireless remote controller unlock

Networking: TTL232 or RS485 (Standard is RS485)

Issuing Device: IR Remote Control, Networking issue card, admin card issue card

Size: 170L x 100W x 65H mm

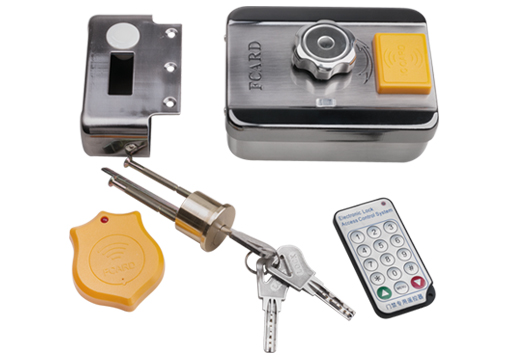

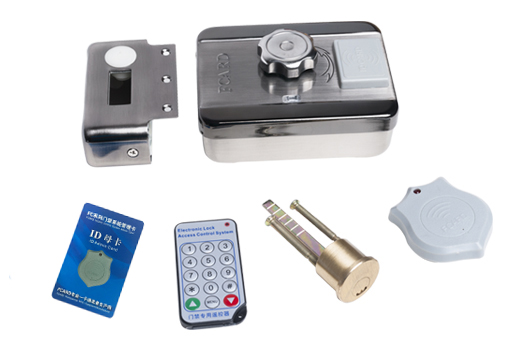

Appearance:

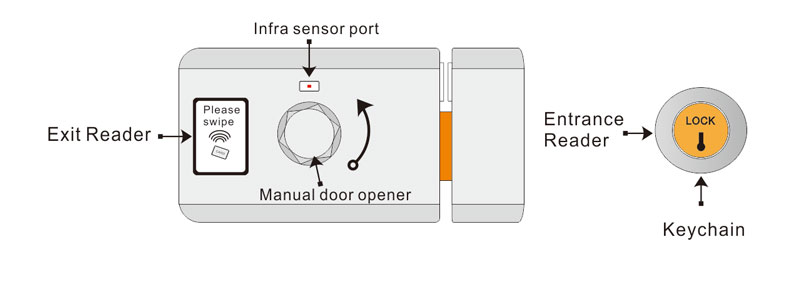

Burglar RFID Lock Appearance


Wiring Connection Diagram:

Caution: the welding is prohibited in this lock!

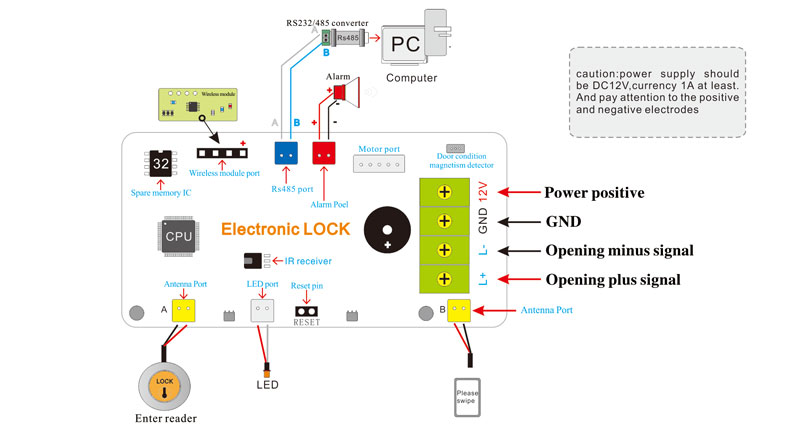

Electric Lock Wiring Connection Diagram

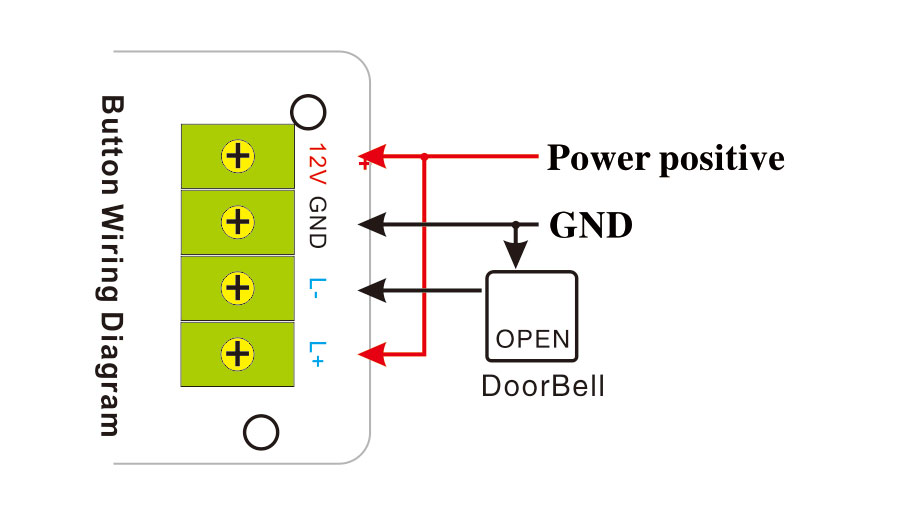

Button Wiring Diagram


Function Introduction:

Door opening function: key, ID/Mifare (radio frequency card), wireless remote control, infrared remote control to open the door (users can choose their own more convenient way to open the door).

Tamper Alarm function: when the electric lock encounters bad man-made damage and the door is not closed for a long time, an alarm will sound.

Access level management function: increase or decrease the card issuing function as the number of personnel increases.

Time period management function: the access rights of managers in different time periods, and each time period can support multiple cards.

Self-editing card number function: self-editing a number for the room number, no need to record the long card number, just remember the number to facilitate future management of the card.

Building intercom function: equipped with a special interface, which can be connected to the building intercom.

Data connection backup function: back up the data in the lock to the data service chip for emergency recovery, or it can be restored to another electric lock.

Record query function: through TTTL232 or RS485 network query user access and door opening records.

Offline operation function: no need for computer support, all adding and deleting user data or setting access control parameters can be carried out directly.

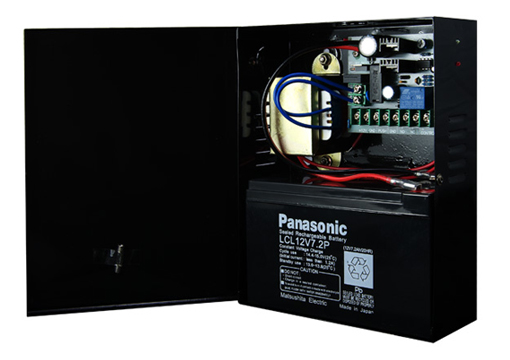

Accessories:


Network Structure Diagram:

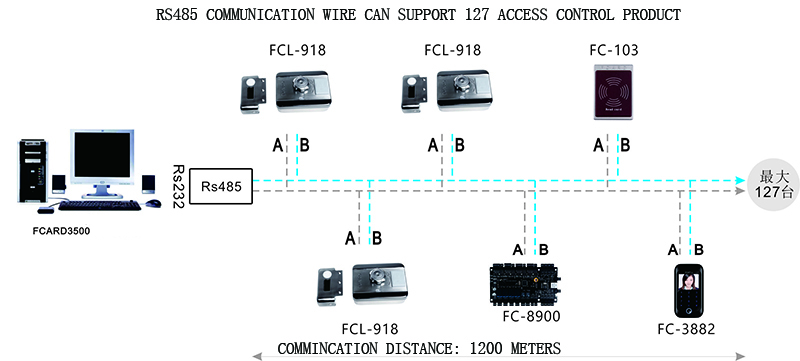

Electric Lock Network Structure Diagram

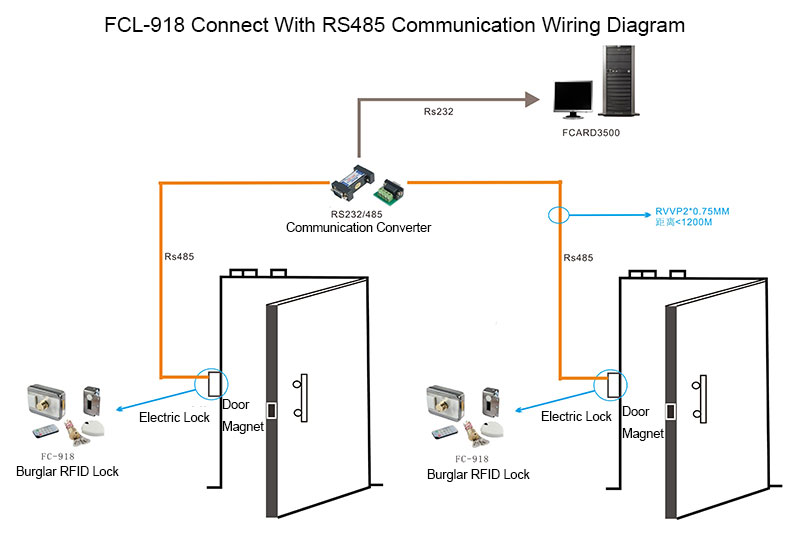

Electric Lock Connect With RS485 Communication Wiring

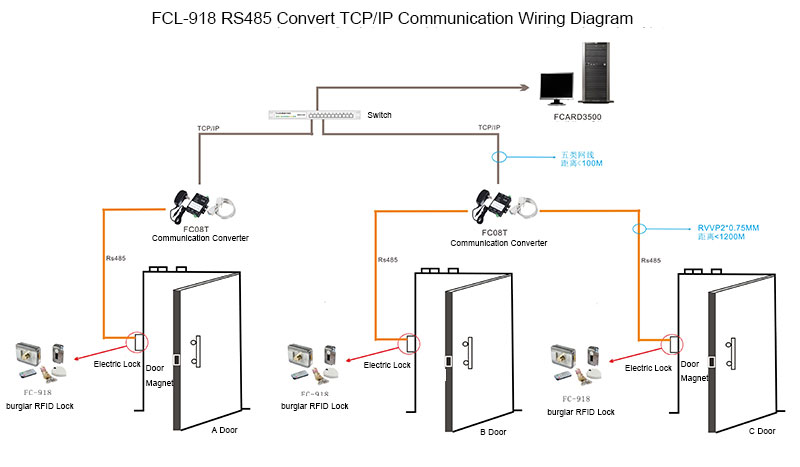

Electric Lock TCP/IP Communication wiring diagram

Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
