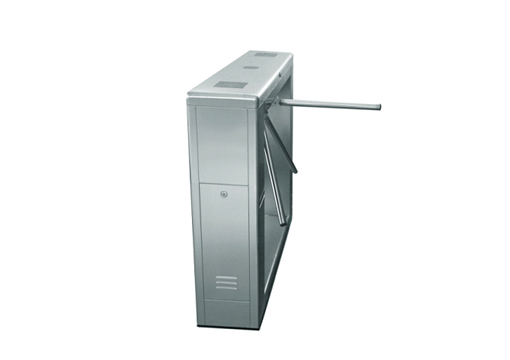

The tripod turnstile FCT-DS202 bridge rounded corner type is an intelligent channel management device developed, developed and produced by our company, by configuring different access control device, you can complete the intelligent control and management of the passageway, in addition, in addition, the ticket sales management system developed by our company can meet the needs of park automatic ticket checking.
The tripod turnstile FCT-DS202 bridge rounded corner type is an intelligent channel management device developed, developed and produced by our company, by configuring different access control device, you can complete the intelligent control and management of the passageway, in addition, the ticket sales management system developed by our company can meet the needs of park automatic ticket checking.
The shape of the whole product is stamped and formed by stainless steel plate, which is beautiful in appearance, rust-proof and durable, and the system adopts standard electrical interfaces to the outside, which can easily integrate barcode cards, ID cards, Mifare cards and other reading and writing devices on the device, thereby providing an orderly and civilized way for entering and exiting personnel, and can prevent illegal personnel from entering and exiting, at the same time, in order to meet the requirements of fire escapes, power outages and poles are cut off in emergency situations to organize evacuation.
Power Supply: AC220V/AC110V (optional)
Working Environment Temperature: -15℃—75℃
Humidity: less than 95%, no condensation
Maximum Channel Width: <600mm
Passage Speed: 50 people/ minute (tripod turnstile)
Communication Interface: RS485 electrical standard
Communication Distance: <1200m
Input Interface: switching signal (COM port is ground)
Working Mode: Single/Bidirection (Adjustable)
Material: 304
Weight: 65kg
Color: stainless steel wire drawing or spraying, optional color
Size: 1200 x 280 x 990MM
Input interface: +12V level signal or pulse width >100ms DC12V pulsing signal drive current >10mA

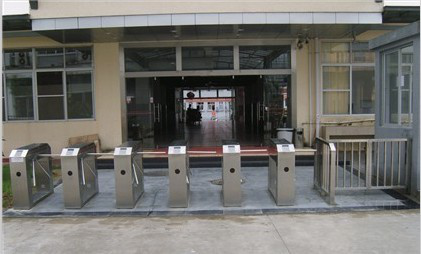

Suitable For: subway stations, terminals, tourist attractions, exhibitions, swimming pools, residential areas, enterprises, institutions, attendance, access control, consumer management, special channel control
Note: The color of the card reading area is optional (the standard is blue)
FCT series channel turnstile are channel access management device developed and designed by Fcard Electronics for many years for park attractions, conference and exhibition centers, office buildings, factories, schools, communities, etc. The FCT system channel gates have a stainless steel shell with a frame structure. Driven by photoelectric induction and stepping motor, it supports multiple access methods such as free channel two-way passage, locking, computer remote control, and authorized access control. Support proximity card, fingerprint, barcode or timed gate opening to pass.
Products Advantage:
1. The movement design is reasonable and reliable,noise is small,internal hydraulic device is automatically buffered,operation very stable,make the service life more long.
2. Have power off to dropping function, also can add remote controller to control, convenient for managing and dealing with unexpected events.
3. LED light with direction indication.
4. Can be set with "memory" or "without memory" (when set as "memory"), can be used for scenic spot which reading once time can pass many people.
5. With automatic reset function,means if not passed within setting time after get the privilege, it will auto cancel the prilege and restored to the locked state.
6. Waterproof, sunscreen, cold resistant, high temperature resistant.
7. With personalized installation interface, compatible with IC, ID card and other smart cards.
8. It has a unified and standard external electrical interface. It can be freely connected with all kinds of read-write devices, so that it is easy to integrate the system.
9. It can be expanded as an automatic identification system, access control, attendance, charging and other functions.
10. Can be used in conjunction with other types of channel products.
System Function:
1. Use unique Geneva Wheel structure to realize the zero position locking and unlocking
2. Whole system runs smoothly, with little noise and no mechanical shock
3. It has the function of fault self checking and alarm prompt, which is convenient for user's maintenance and use
4. It has many working modes are available, can be bidirectional reading to limit, also can one side to reading, the other side fobid passed, one side reading card, another side free passed, and the working mode of turnstile can be set by the control board button, without changing the mechanical structure.
5. Arms auto drop when power off , auto up when power on.
6. Remote control drop/up arms, to meet the users and fire security requirements
7. It has a unified and standard external electrical interface.Can be connected with all kinds of read-write devices, which is convenient for system integration, and can realize remote control and manage by computer.
8. It can automatically count the people total quantity, and display bu LED
9. With a clear pass indication function, indicates the user can passed or cannot passed.
10. With reading memory or without memory function,and users can according to their own needs to settings by access control board button
11. Software setting, can limit the persons' quantity,to meet the special requirements.
12. Auto reset function.If not passed within the setting time, it will auto cancel the prilege and restored to the locked state.
13. With anti drilling, anti climbing alarm function(Optional)
Applications:
Office locations: government agencies, commercial buildings, office buildings, etc.
Scientific and educational units: universities, research institutes, libraries, etc.
Commercial services: shopping malls, supermarkets, hotels, clubs, banks, etc.
Rest and entertainment: parks, scenic spots, playgrounds, etc.
Transport stations: bus stations, railway stations, subway stations, airports, docks, etc.
