MC-5824 Wiring Diagram

2016-11-09 15:05

Details of the problem:

Excuse me, the MC-5824 Access Controller and Exit Button we purchased from your company how to connect? Can you provide me the wiring diagram? Thanks.

Expert answer:

Thank you for your purchased. The wiring diagram shown as below:

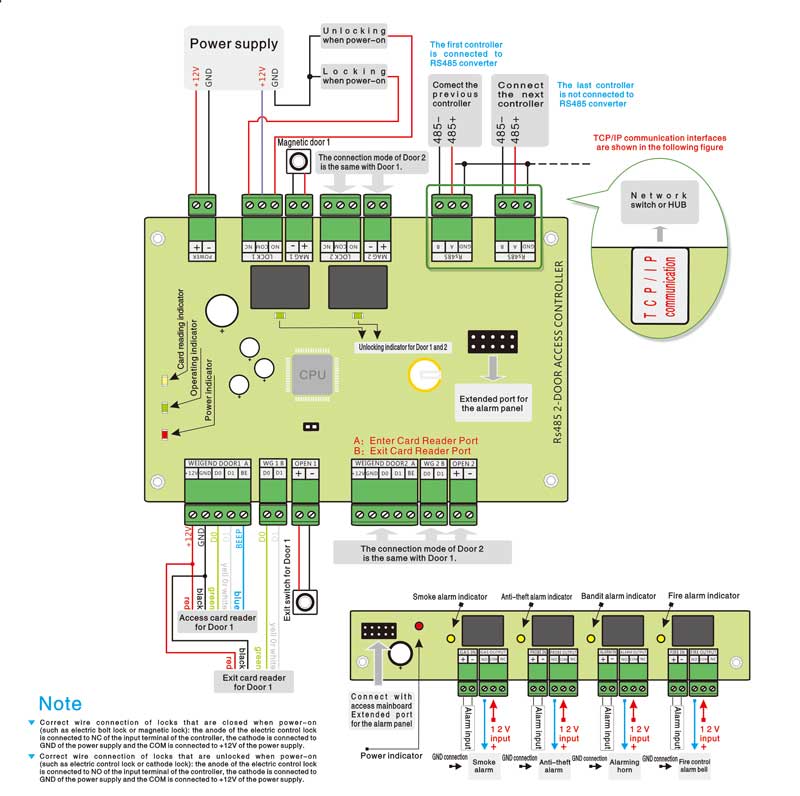

MC-5824 Access Controller Wiring Diagram

If you still have problems, please add my Whats App: +86 15920586642
