Adopt the Silent Lock body, suitable for use in cold environment, low the fault rate, supports ID card and mechanical key, supports 1000 users, TTL232 network communication, burglar management, data backup, copy and delete card by master card, provide one intercom linkage port (Silent lock)
FC-915 series Electric Door Lock is suitable for residential、Dormitories、housing etc. It difference with the traditional lock, FCL-915 is not use the traditional motor drive, but use electromagnetic absorption structure, greatly enhance the lock life and reduce the fault rate. FCL-915 max can support 21,000 users data (default is 1,000), support admin card and room number to issue card、wireless remote controller unlock、any card unlock + auto registration、user data backup、burglar alarm etc function, it can meet the needs of mostly people.
Working Voltage: DC9-15V
Working Current: <500mA
Working Temperature: -10℃-75℃
Working Humidity: 10-90%
Reading Speed：＜0.2S
Sensor Distance: 0-80mm
Alarm Outout: support
User: 1000 group（extend to 21000）
Wireless Control: support 315MHZ
Admin Card Device: infrared control,master card
admin card
Size: 170X100X65mm
Offline Operation: support
Date Restore: Support
Product advantage:
1, Using electromagnetic absorption structure, longer life, more stable.
2, Memory auto expansion technology, if you replace the memory, FCL-915 will automatically identify the size of memory and auto expansion the capacity (no need to go back to factory to extend)
3, Data auto backup, you can effectively prevent the problems after data loss, can also copy the data to other FCL-915, reduce repeat issue card.
4, Firewall technology, can intercept copied card unlock, greatly improving access control security.

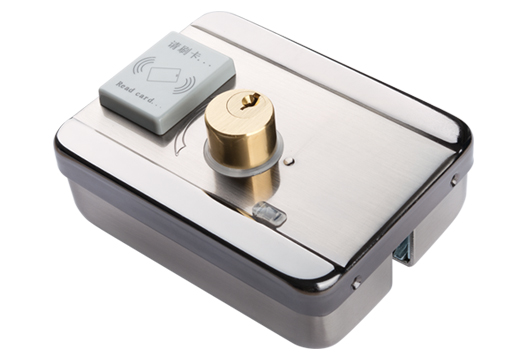

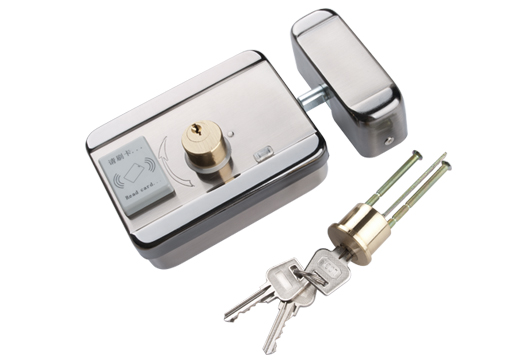

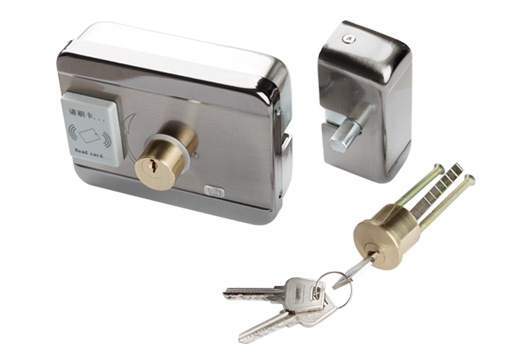

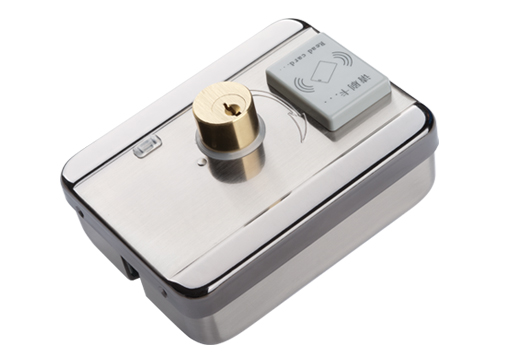

Appearance:

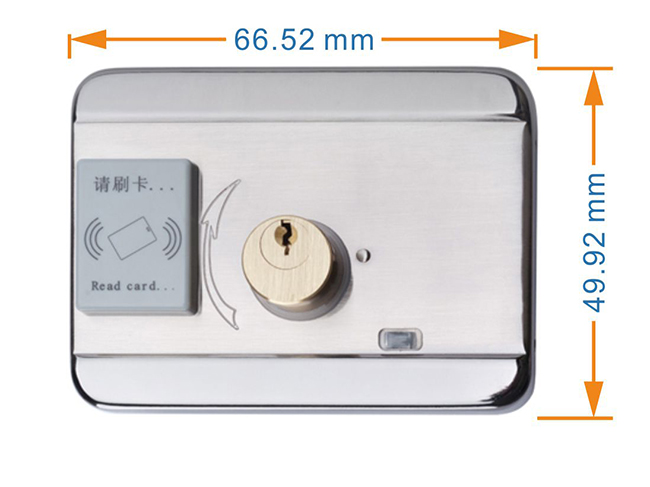

Size:

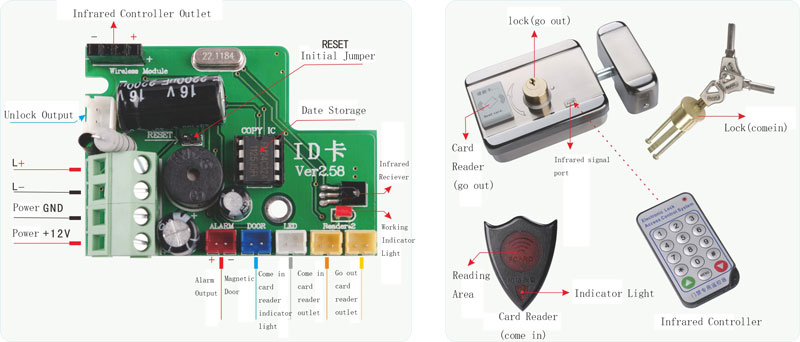

Wiring Diagram:

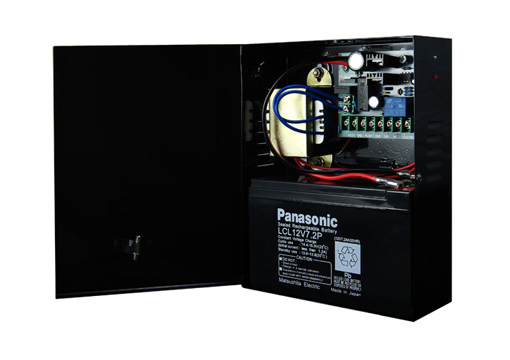

Accessories:
