The FC-9000 series time attendance access controller provides more attendance functions, and the flexible schedule function realizes management functions such as day shift, double shift, three shift, duty, etc., overtime, business trip, leave, and holidays. If the on and off hours are uncertain, you only need to calculate the working hours to use the flexible time and attendance function.

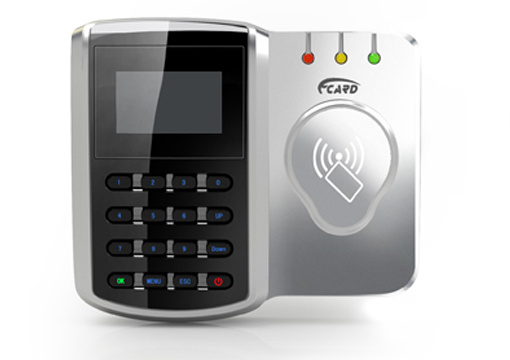

FC-9000 series radio frequency card professional time attendance access controller is a new generation of induction time attendance access controller designed for factories, schools, office buildings, etc. This series of professional time attendance access controller adopt the latest 32-bit processor and process information faster.Using CMOS FLASH MEMORY memory, the data stored in the power-off state will not be lost for ten years, the memory capacity can store up to 80,000 data, and it can be expanded to 200,000 by adding memory.
FC-9500 series time attendance access controller supports RS232, RS485, USB transmission, TCP/IP or wireless communication networking. It adopts RS485 communication mode. The first-level network can connect 255 units, the longest communication distance is 1200 meters, and the transmission rate is 19200bps.
Support Chinese traditional and simplified operation, can freely choose Chinese (simplified/traditional), Korean, English, Thai and other display modes, and support simulated voice prompts for real people.Using 128*64 dot matrix liquid crystal display (backlight display), you can freely set the backlight normally closed and normally bright periods. The card data is stored safely, and the latest card-swiping record is automatically converted into a historical record and saved in the device after the collection is completed, so that the original record can be consulted at any time.
Type: FC-9000E
Power: Maximum is 5W
Reading Speed: 0.1s
Reading Distance: 0-150MM
Registered Way: Password ID Card
Card Type: EM/ID Card
User Capacity: 3,000 users
Records Capacity: 1,000
Time Attendance Capacity: 80,000
The Power Supply Life: 2-6 hours
Language: Chinese、English、Korea
Communication Port: RS232、RS485(Others need to order)
Interface: Wiegand26
Voltage: DC 12V
Size: 219.5L x 40W x 197H mm
LED Display/Voice Prompt: Chinese(Traditional、Simple)、Korea、English、Thai
Working Temperature: 0-70 ℃ 0-70 ℃
Operation Humidity: 20-80% 20-80%
Type: FC-9000M
Registered Way: Password Mifare Card
Card Type: Mifare 1/ Mifare Card
Reading Speed: 0.3s
Reading Distance: 0-80MM
User Capacity: 3,000 users
Records Capacity: 1,000
Time Attendance Capacity: 80,000
The Power Supply Life: 2-6 hours
Language: Chinese, English, Korea
Communication Port: RS232, RS485(Others need to order)
Interface: Bell Wiegand26, Bell
Voltage: DC 12V
Power Consumption: 5W max
Size: 219.5L x 40W x 197H mm
LED Display/Voice Prompt: Chinese(Traditional/Simple), Korea, English, Thai
Working Temperature: 0~70
Operation Humidity: 20~80 %
Features of time attendance access controller:
The time attendance access controller provides more attendance functions, and the flexible schedule function realizes management functions such as day shift, double shift, three shift, on-duty, etc., overtime, business trip, leave, and holidays. If the on and off hours are uncertain, you only need to calculate the working hours to use the flexible time and attendance function. Four-line liquid crystal display, which can display information such as name, card number, time, etc., has its own clock and is consistent with the system clock.

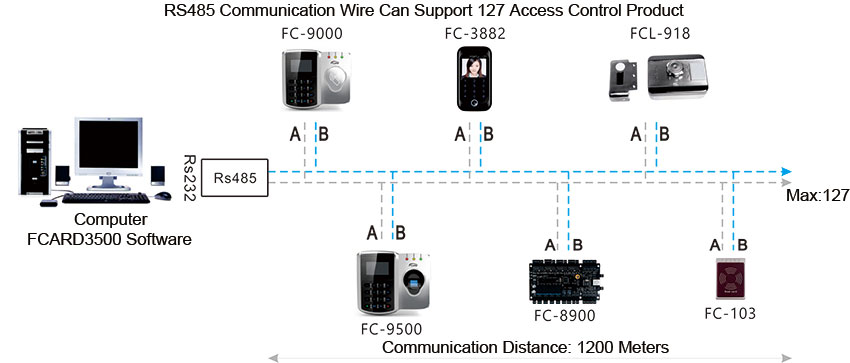

Fingerprint Time Attendance & Access Controller System Structure:
Fingerprint Time Attendance & Access Controller Internet Structure:
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller,guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
