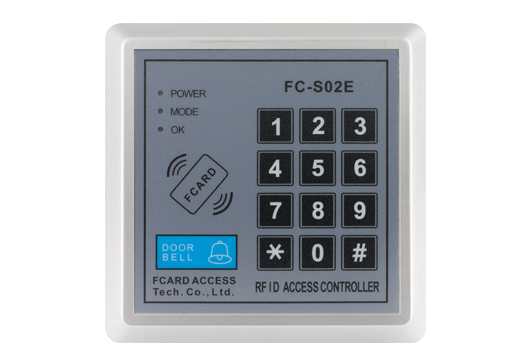

FC-S02E Simple Access Controller

FC-S02 access controller is an access control product specially developed and designed by "Fcard Electronics" for electric door locks and security systems. It supports proximity card (EM card, EM compatible card, EM format encryption card) door opening, password opening, there are three ways to open the door: proximity card + password to open the door. Users can choose a suitable way to open the door according to their needs. The access control programming setting is carried out directly on the keyboard, without a computer, and the operation is simpler. The access control keyboard self-locking function, the user can set the number of keyboard errors and preset the keyboard self-locking time, which can effectively prevent others from detecting the door password and tampering alarm function, when the anti-unloading device is working, the access control will start the alarm output and prompt sound. After the door sensor is installed, this function will be activated automatically. The access control has strong anti-interference ability and self-diagnosis protection function to ensure the normal operation of the system safely and effectively.

Access control can store up to 110 sets of door opening data information (including proximity card opening data, password opening data, proximity card + password opening data), and all stored information will not be lost due to power failure. At the same time, the access control supports doorbell output and can be equipped with wired doorbells output. FC-S02 access controller is powerful and easy to install. It is used in offices, homes, computer rooms and public places.

This series of products is divided into 4 series, composed of 25 models, suitable for different needs. All products in this series are designed with card reading circuit, storage circuit and control circuit, which can independently complete card issuance, card reading, judgment, prompting, and control. All models are equipped with a watchdog circuit to prevent crashes to ensure system safety. Using super-strong card reading circuit, the recognition distance is longer and more accurate, and the speed is faster. Card issuance without a computer, which is convenient and easy to use.

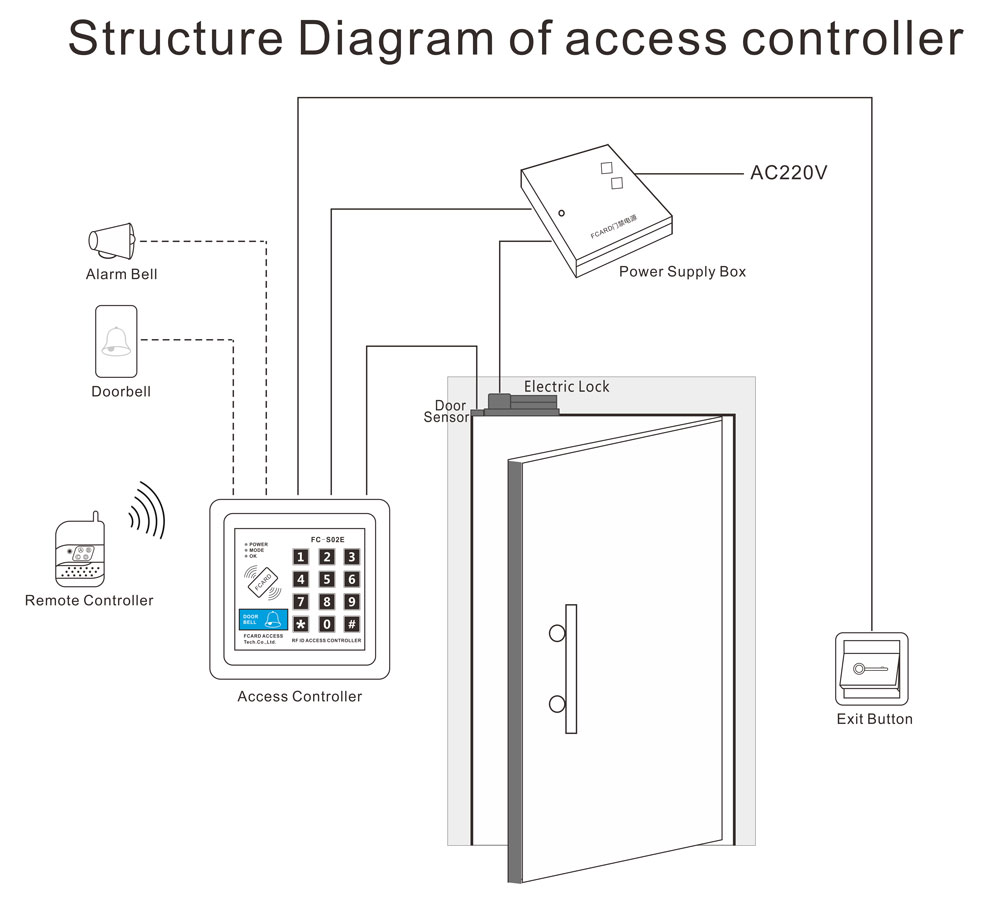

Wiring Diagram:

Connection Port Performance:

1. + 12V: Working power supply anode, input range: DC9-13.8V.

2. GND: Working power supply cathode, signal common ground.

3. NO: Relay normal open point, current load capacity DC3A / 30V.

4. COM: Relay common point, current load capacity DC3A / 30V.

5. NC: Relay normal close point, current load capacity DC3A / 30V.

6. OPEN: Exit Button, low level unlock.

7. DOOR: Door status switch, connected to magnet, low level represents door shut.

8. ALM: Alarm output port, low level there is alarm, current load 100ma.

9. BELL: Connected to doorbell.

Indicator Light:

1. POWER: Power indicator, normally lightwhen have electric.

2. MODE: MODE long bright indicates has beenenter administration status. MODE flashing light meansnormal status.

3. OK: OK flashing light means unlock.

Function introduction:

Card unlocked, password unlocked, card + password unlocked, wireless remote controller unlocked, data backup, data recovery, anti detection unlock, issue serial number, admin card issue card, anycard unlocked, anycard unlock + auto registration, anti break alarm , timeout prompt, external connect doorbell, fire alarm linkage, door normally opened, self recovery admin password, multi mode issue/delete card, door sensor alarm, offline operation.

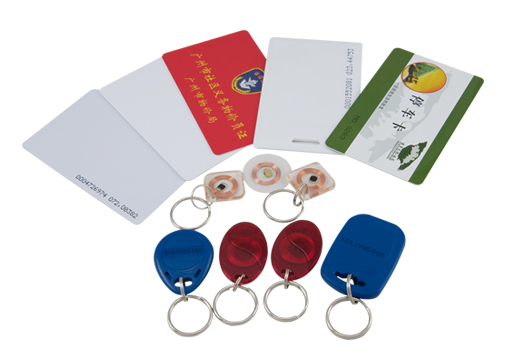

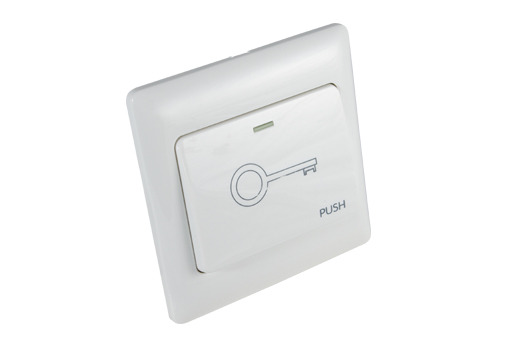

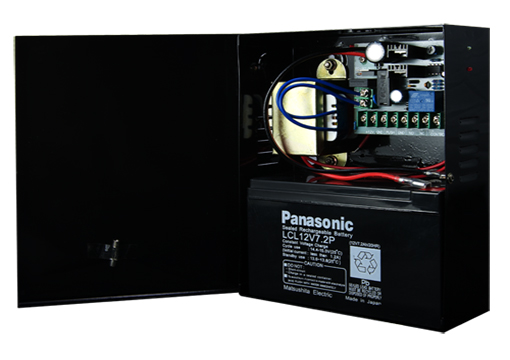

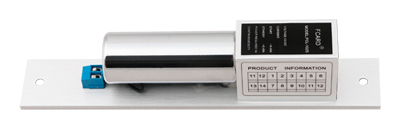

Accessories:

Wiring Diagram:

Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
