FC-399E touch screen access controller supports 3 door opening methods including proximity card (EM card, EM compatible card, EM format encryption card, MF1 format Mifare card) door opening, password opening, proximity card + password opening, users can choose their own according to their needs appropriate way to open the door.

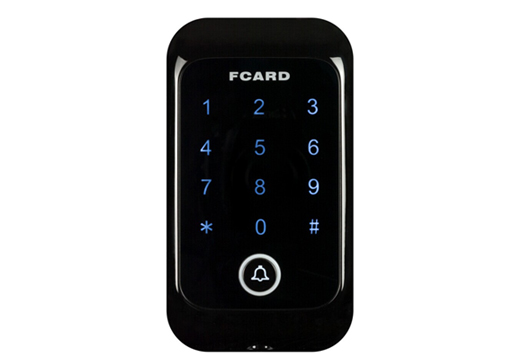

FC-399 Touch Screen Access Controller
FC-399 touch screen access controller is specially designed for electric door locks and security systems. It supports proximity card (EM card, EM compatible card, EM format encryption card, MF1 format Mifare card) door opening, password opening, proximity card + password there are 3 door opening methods such as door opening, and users can choose their own suitable door opening method according to their needs. The touch screen access control programming setting is carried out directly on the keyboard, without a computer, and the operation is simpler.
FC-399 touch screen access controller has the access control keyboard self-locking function. The user can set the number of keyboard errors and preset the keyboard self-locking time, which can effectively prevent others from detecting the door password. Anti-dismantling alarm function, when the device is dismantled under working condition, the access control will start the alarm output and prompt sound. The touch screen access controller supports illegal door opening alarm. The device detects abnormal door opening through the door sensor switch signal, and the door sensor will activate the alarm output and prompt sound. After the door sensor is installed, this function will be automatically activated. The access control has strong anti-interference ability and self-diagnosis protection function to ensure the safe and effective operation of the system. The access control can store up to 10,000 sets of door opening data information (including proximity card opening data, password opening data, proximity card + password opening data), and all stored information will not be lost due to power failure. At the same time, the access control supports doorbell output and can be equipped with wired doorbells use.
The access controller is powerful and easy to install. It is the ideal access control device of choice for offices, homes, computer rooms and public places.
Working Voltage: DC 9-13.8V
Working Current: < 150mA
Working Temperature: - 0℃- + 65℃
Reading Speed: < 0.2s
User Capacity: 10,000 groups
Exit Switch: Support
Door Sensor: Support
Admin Card Manage: Support
Data Backup: Support
Wireless Controller: Support
Alarm Output: Support
Offline Operation: Support
Issusing Device: Keyboard manage, admin card
Size: 125 x 90 x 30mm

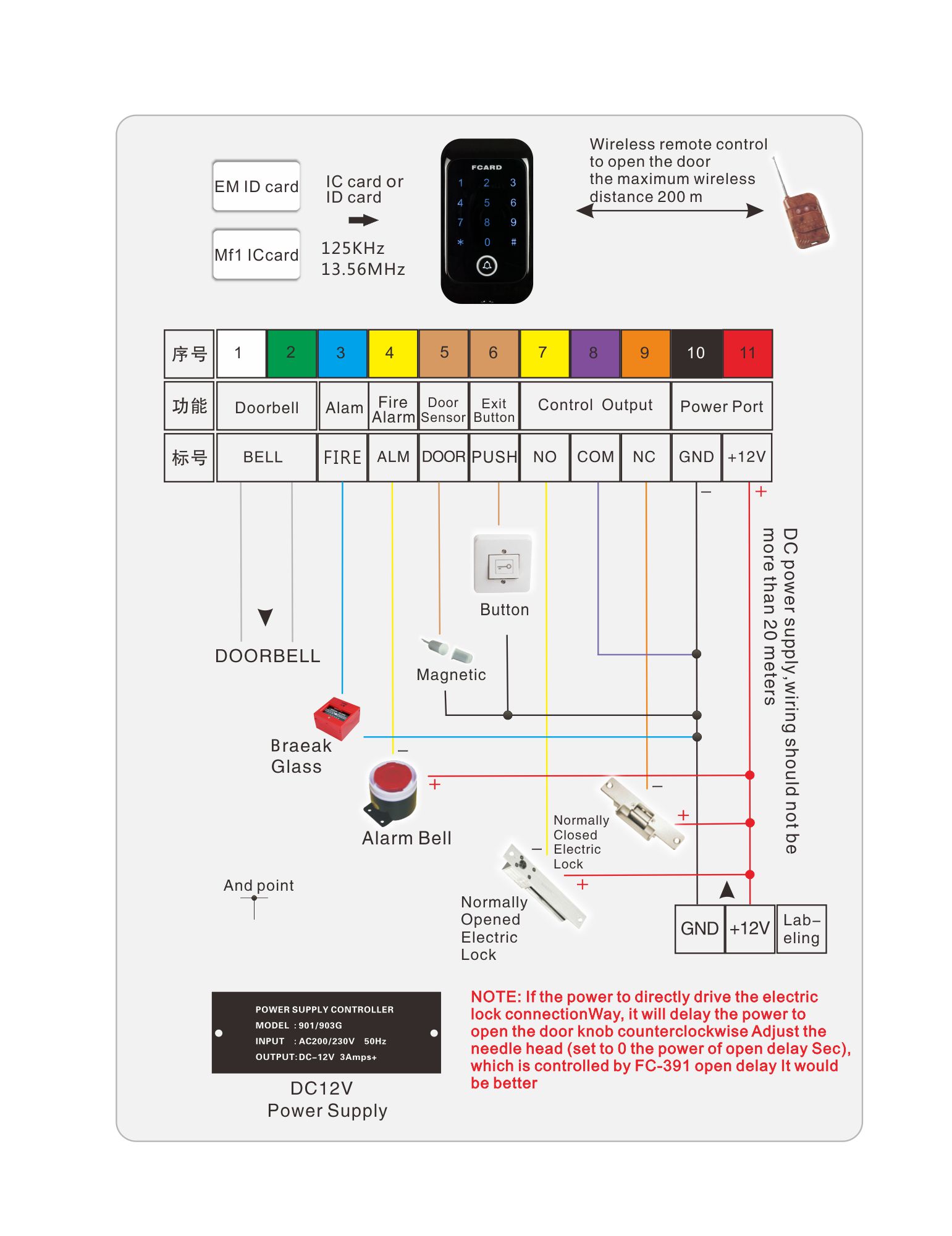

Wiring Diagram:
(Note: Before you connect the device, make sure that the operation is under the state without electricity, so as to avoid device burned due to misconnection or short circuit etc.)
Connection Port:
+12V: Power positive, input range: DC9-13.8V.
GND: Power negative, it is also the signal public place.
NC: Relay normally closed point, current load capacity DC3A/30V.
COM: Relay common point, current load capacity DC3A/30V.
NO: Relay normally opened point, current load capacity DC3A/30V.
PUSH: Exit button switch, low electric unlock.
DOOR: Door status switch, link door sensor switch, low electric means door closed.
ALM: Alarm input and output, it is electric while alarm, current load 100mA.
FIRE: Connect alarm signal (Connect GND).
BELL: Connect door bell switch.

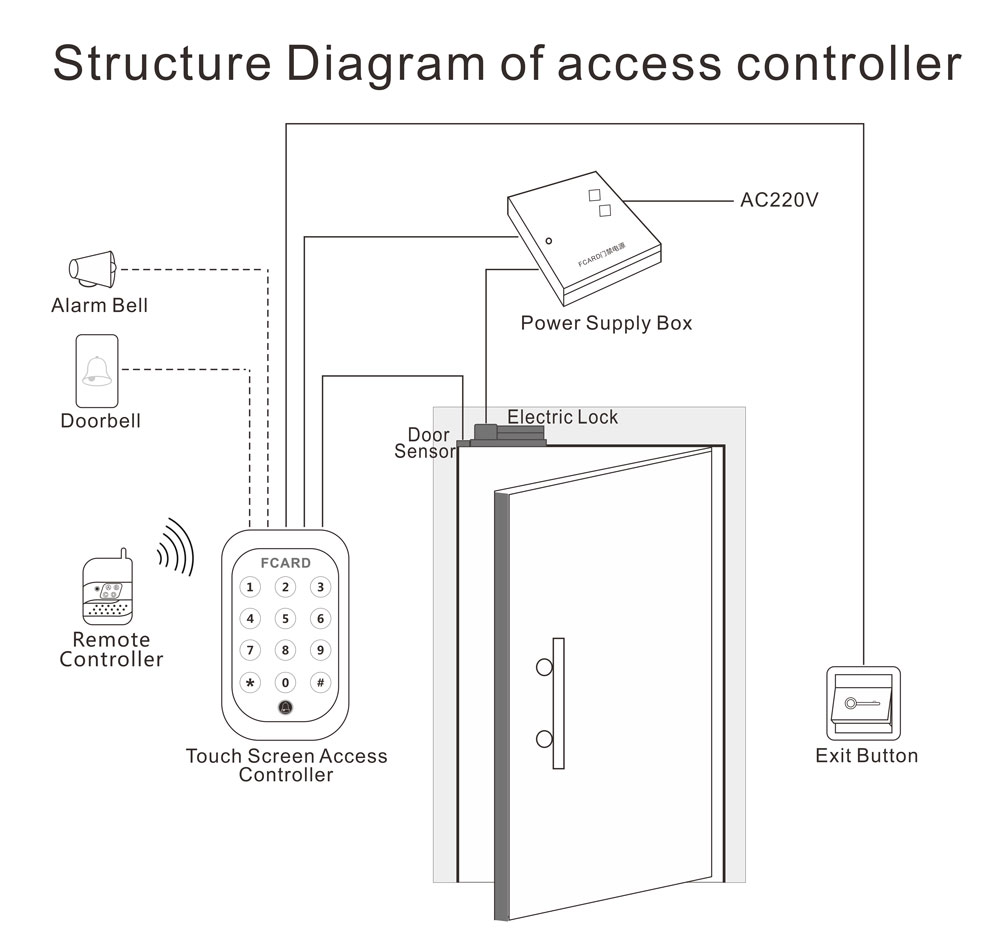

Structure Diagram:
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
