MCT-05A/B Access Control Power Supply With charge and discharge circuit, over discharge protection function, high-power pure copper good quality transformer and super large terminal, it can also be equipped with 12V 7AH battery (MCT-05B has built-in battery). After power failure, it can continue to supply power.

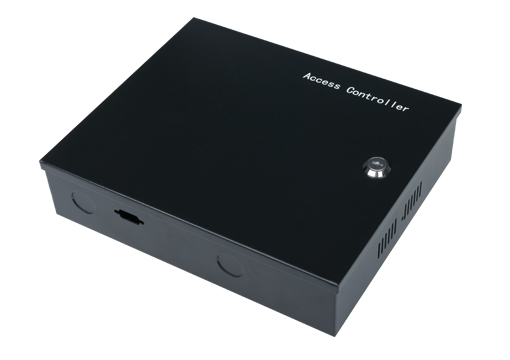

MCT-05A Access Control Power Supply
MCT-05A Access control power supply specially used with access control board, build in Installation column which is suitable for FC-8900 series access control board, with charge and discharge circuit, over discharge protection function, high-power pure copper good quality transformer and super large terminal, Access control power box can also be equipped with 12V 7AH battery (built-in battery). After power failure, it can continue to supply power.
The power supply is used with high grade electronic components and the advanced international technological process of manufacturing technology. The quality is absolutely reliable.
AC input: AC220V 50HZ
Output Voltage: DC12V
Instantaneous Current: 5A
Continuous Current: 3.0A
Working Temperature: -20 C to +60 C
Working humidity: ≤90%RH
Battery: built-in
Size: 23*27*6.7cm

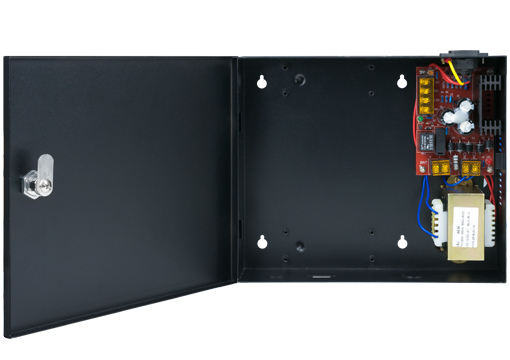

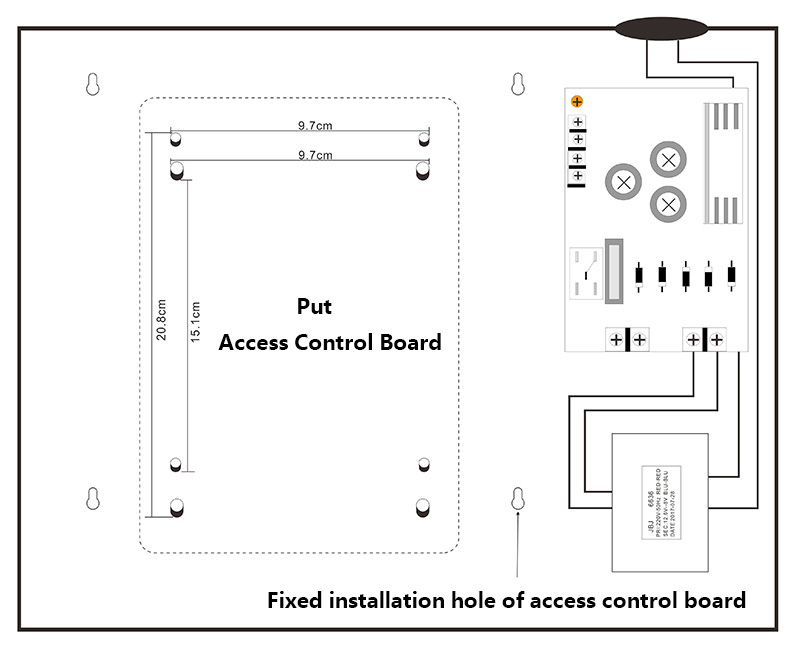

The internal structure of the power supply box:
Wiring Instruction:

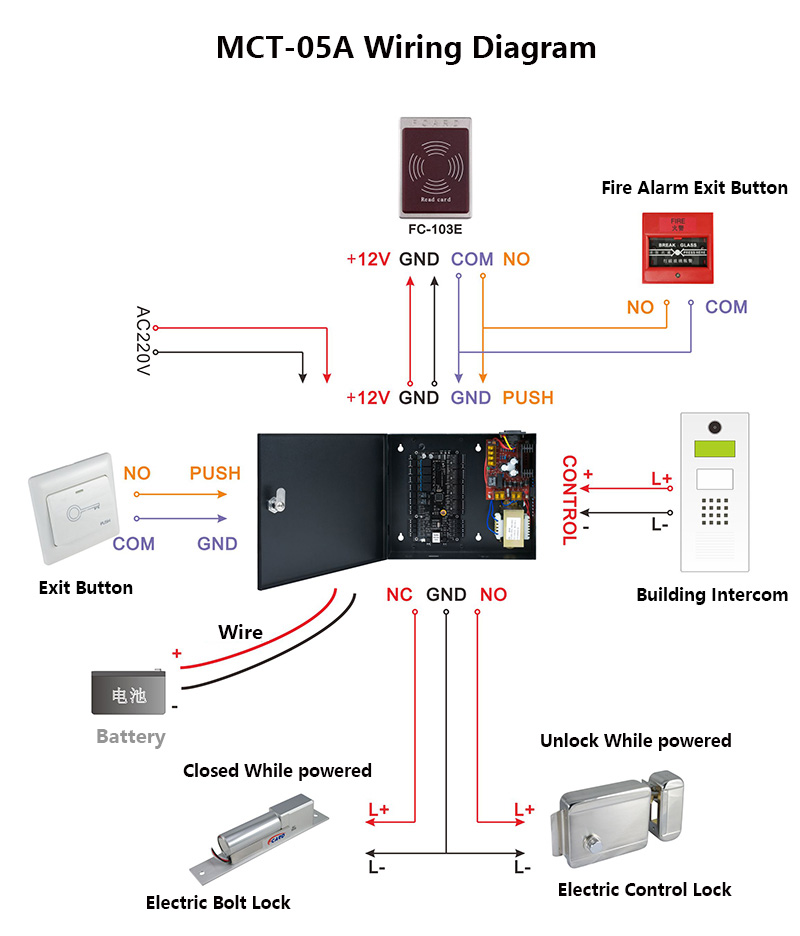

Wiring Structure Diagram:
