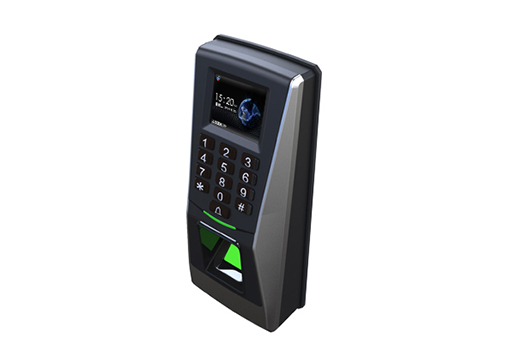

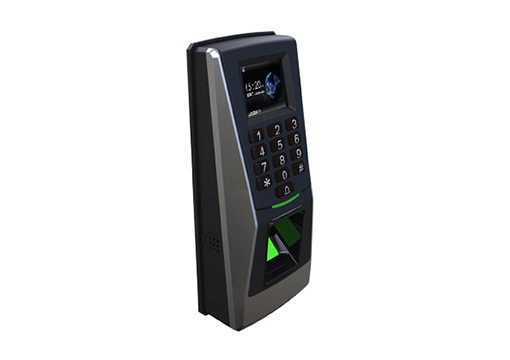

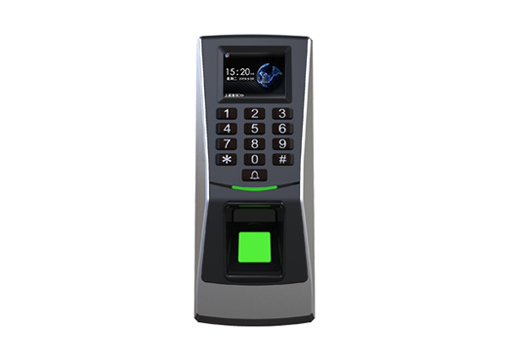

FC-A103E/M Fingerprint Access Controller
FC-A103 is a fingerprint access controller, support network and standalone running. It uses multi-core ARM processor, mass memory. Built-in fingerprint identification circuit, support high-speed identification and rejection of false fingerprints. Fingerprint identification time < 1S, using 1.8 inch TFT color screen, support 1000 fingerprints, 1000 cards, 1000 passwords, 100,000 records, (can be customized to support ID card or Mifare card, TCP/IP and RS485, support 1 group of unlock relay, 1 group of door sensor, 1 group of alarm output, Can use U disk to backup data, support cloud platform. Simplified Chinese, English (other languages can be customized)


Product Introduction


FC-A103 Fingerprint Access Controller


FC-A103 is a Fingerprint access controller, support network and standalone running. It uses multi-core ARM processor, mass memory. Built-in fingerprint identification circuit, support high-speed identification and rejection of false fingerprints. Fingerprint identification time < 1S, using 1.8 inch TFT color screen, support 1000 fingerprints, 1000 cards, 1000 passwords, 100,000 records, (Can be customized to support ID card or Mifare card), TCP/IP and RS485, support 1 group of unlock relay, 1 group of door sensor, 1 group of alarm output, can use U disk to backup data, support cloud platform. Simplified Chinese, English (other languages can be customized)

Product Parameters

Model: FC-A103E/M

Working Temperature: 0-70℃

Working Humidity: 20-80%

False Recognition Rate: < 0.0001%

Rejection Rate: < 0.01%

Working Voltage: DC12V (9-14V)

Display: 1.8 inch TFT color screen

Verification Mode: 1:N, 1:1

Registration Way: Fingerprint, Password, ID Card (Mifare Card Optional)


Working Mode: Time Attendance Access Controller

Fingerprint Acquisition Area: 16 x 14 mm

The Acquisition Angle Range: ± 45°

Confirm Response Time: < 1s

Capacity: 1,000 fingerprints, 1,000 cards, 1,000 passwords, 100,000 records

Communication Port: TCP/IP, RS485, USB

Controller Port Protocol: Wiegand26

Size: 66 X 160.5 X 39.5mm



FC-A103 Fingerprint Access Controller



Product Advantages:

1. Living Fingerprints

2. High Speed Algorithms

3. Support TCP/IP Communications

4. Narrow Design

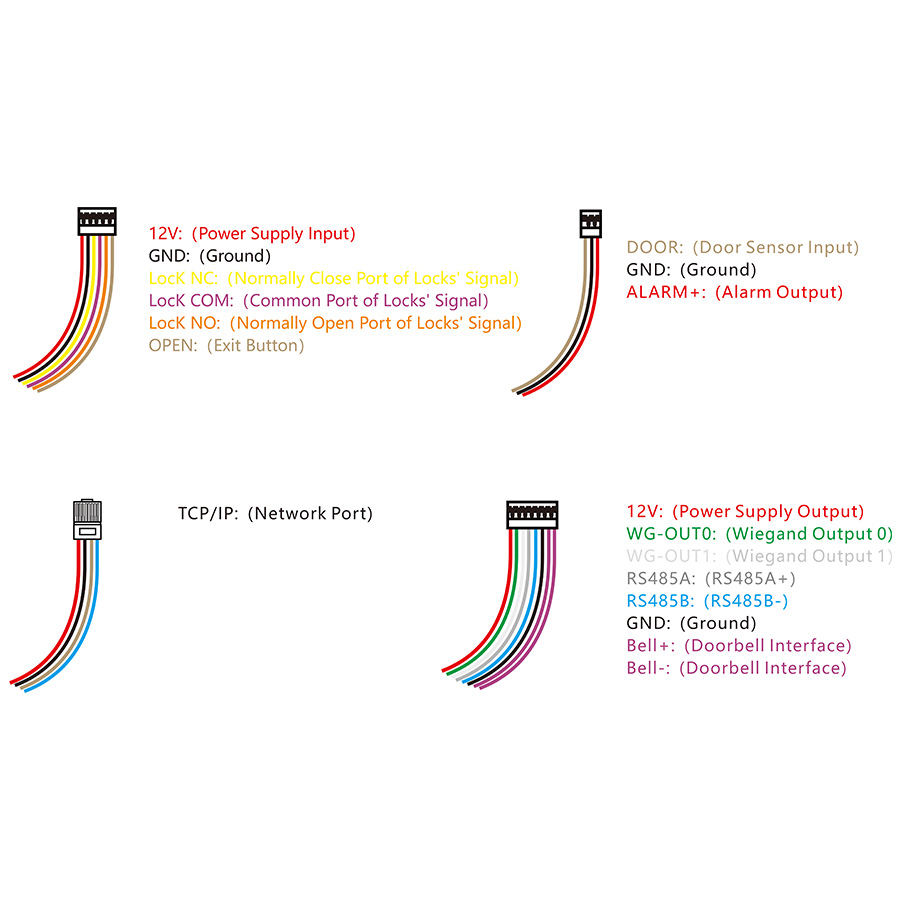

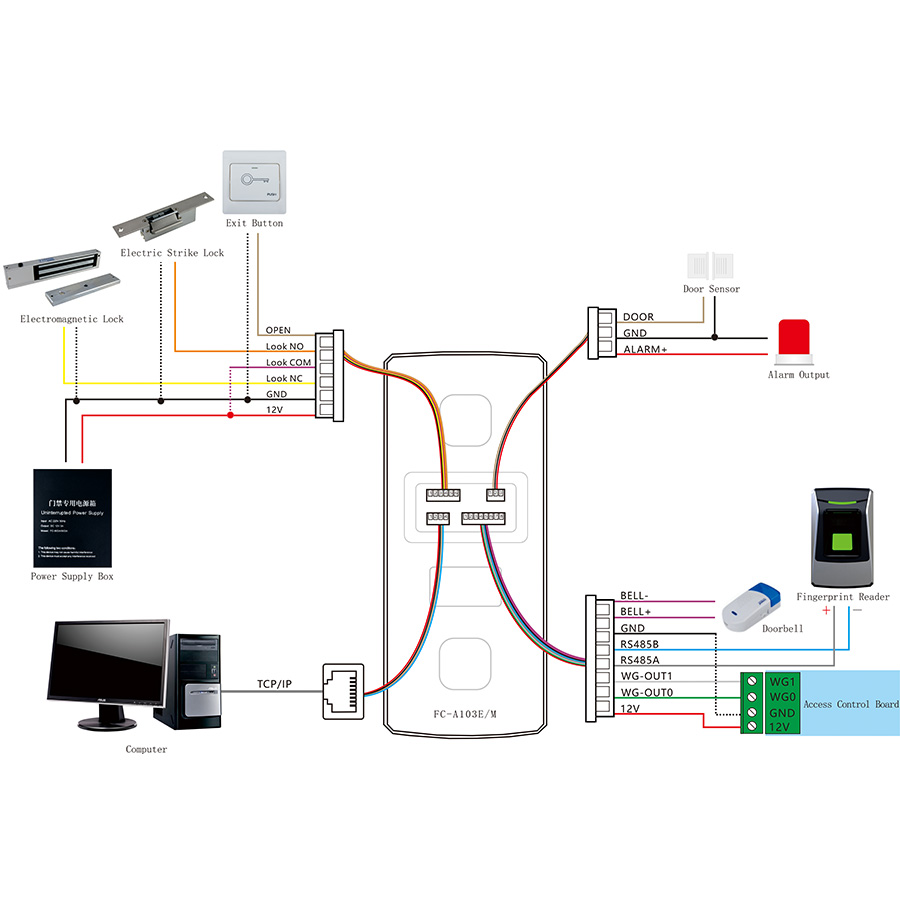

Wiring Diagram:

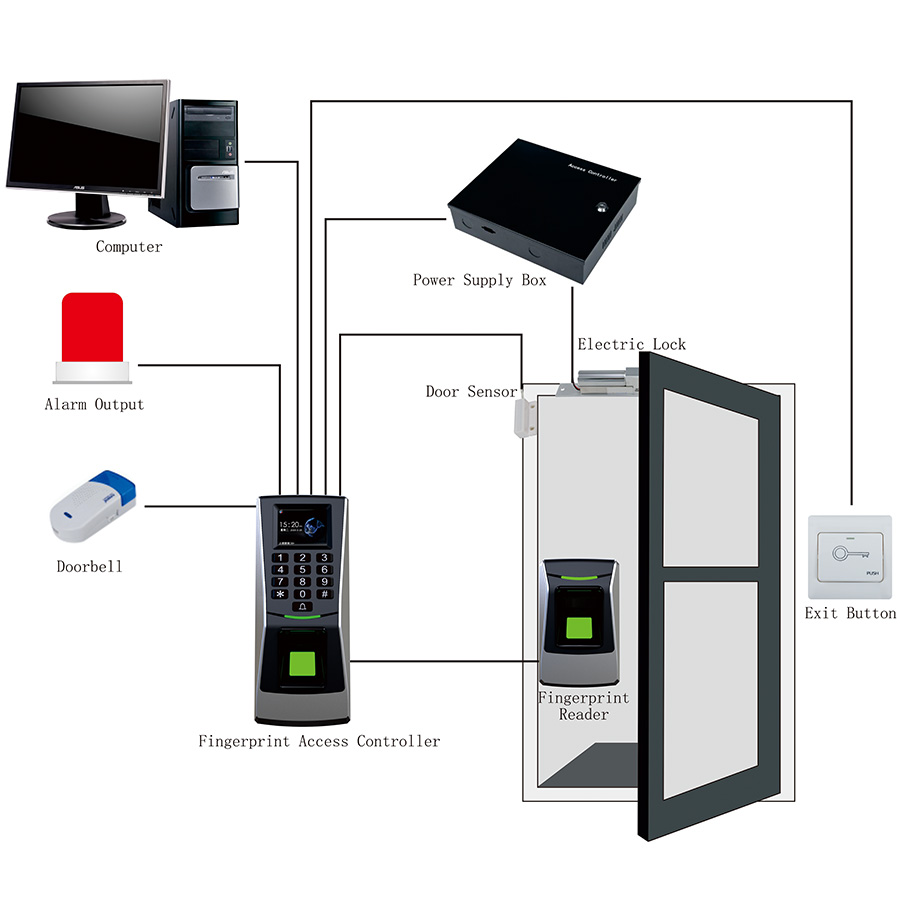

System Structure:

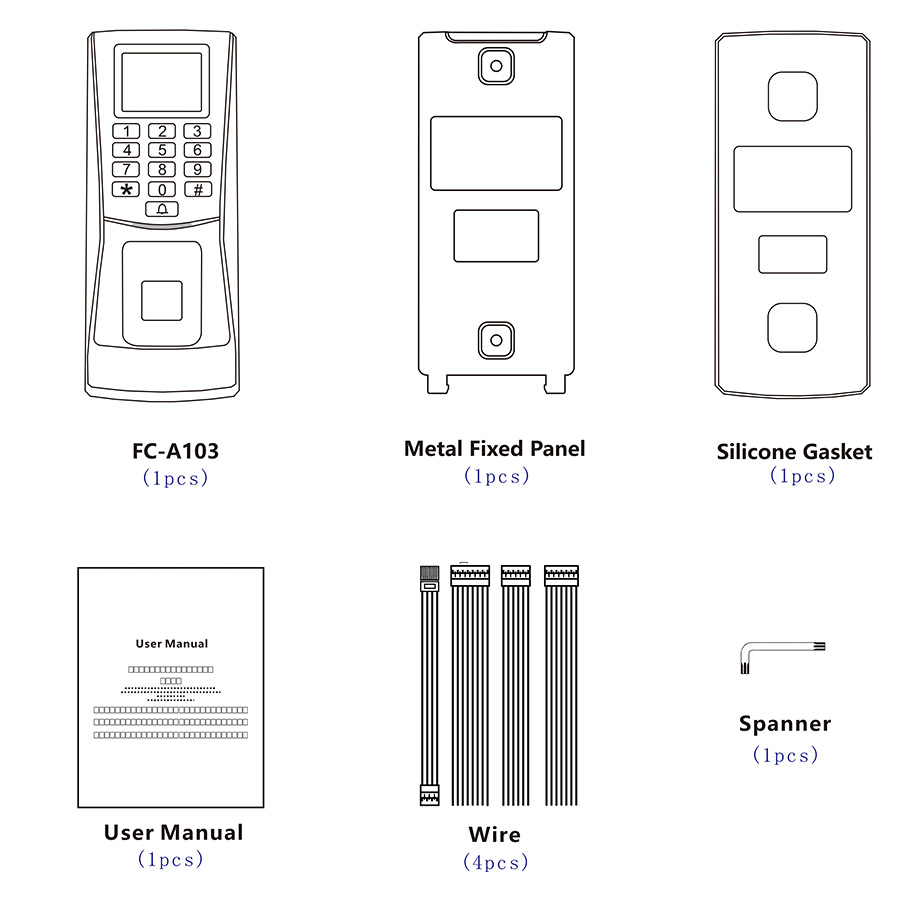

Accessories:




Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
