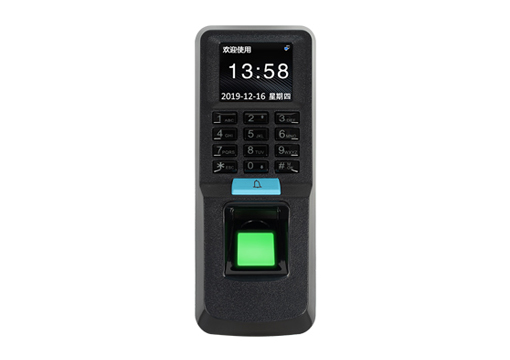

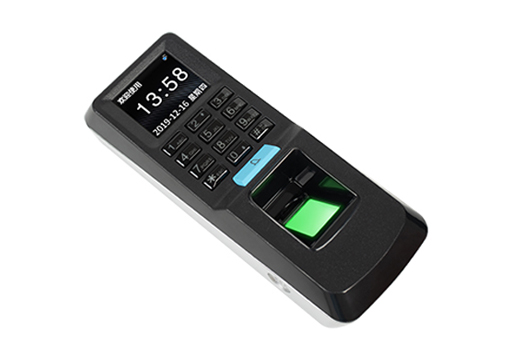

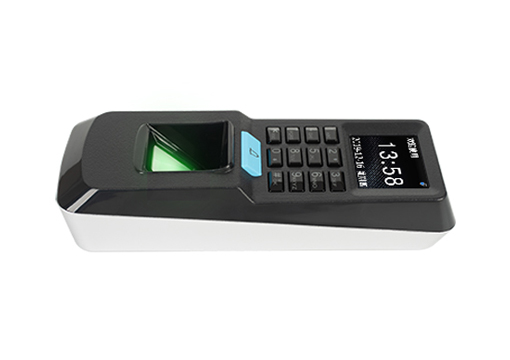

FC-C103 Time Attendance Access Controller
FC-C103 is a time attendance access controller, which supports networked access control attendance and independent work. It adopts multi-core ARM processor, integrates massive memory unit, built-in live fingerprint recognition circuit, supports high-speed recognition and rejection of fake fingerprints. Fingerprint recognition time <1S, using 1.8-inch TFT color screen, supporting 1000 fingerprints, 1000 cards, 1000 passwords, 100,000 records (optional ID card or Mifare card), TCP/IP networking, RS485 networking, and 1 set of door opening relays, 1 group of door sensor, 1 group of alarm output, support U disk backup data, support cloud platform. Simplified Chinese, English (other languages can be customized).
Model: FC-C103
Working Temperature: 0-70℃
Working Humidity: 20-80%
False Recognition Rate: < 0.0001%
Rejection Rate: < 0.01%
Working Voltage: DC 12V (9-14V)
Display: 1.8 inches TFT color screen
Verification Mode: 1:N, 1:1
Registration Way: Fingerprint, Password, ID card and Mifare card optional
Working Mode: Time attendance access controller
Fingerprint Acquisition Area: 16 x 14 mm
The Acquisition Angle Range: ± 45°
Recognition Time: < 1s
Capacity: 1000 fingerprints, 1000 cards, 1000 passwords, 100,000 records
Communication Interface: TCP/IP, RS485, USB
Controller Port: Wiegand26
Size: 60 X 155 X 33 mm
FC-C103 Time Attendance Access Controller
Product advantages:
1. Liveness Fingerprints
2. High Speed Algorithms
3. Support TCP/IP Communication
4. Narrow strip desig
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
