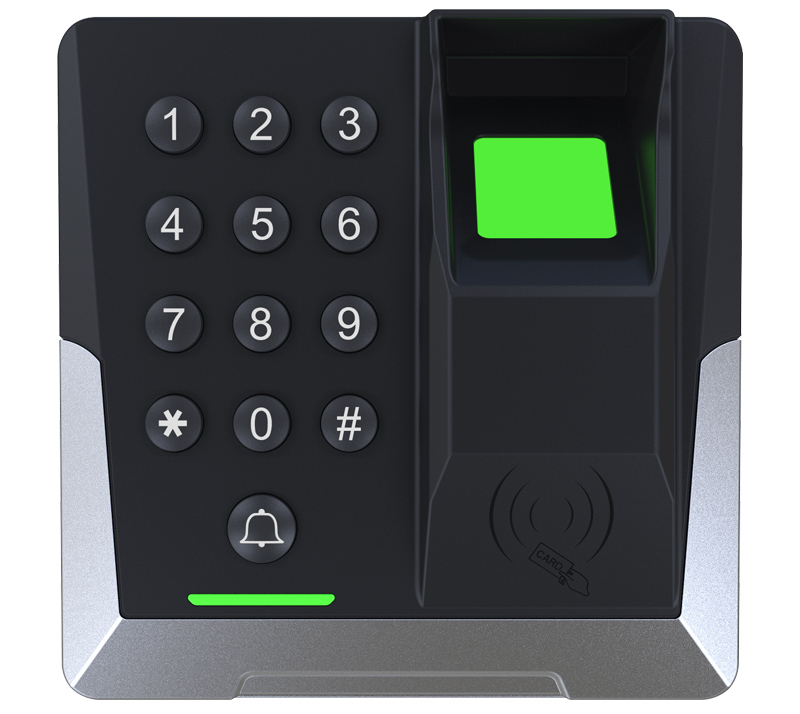

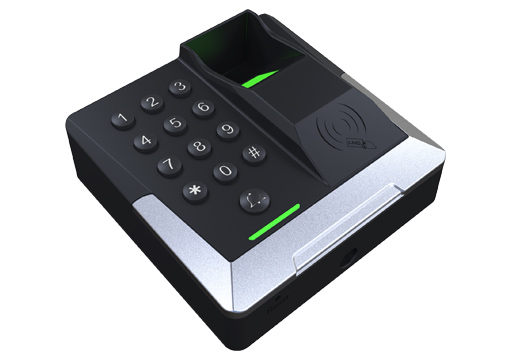

FC-A07 Fingerprint Access Controller
FC-A07 is a fingerprint access controller, which can also be used as a fingerprint access controller for card readers. Built-in professional processor, independent authorization fingerprint and card issuing without networking, built-in live sensor fingerprint circuit, high-speed identification and rejection of fake fingerprints, fingerprint identification time <1S, support: 1000 fingerprints, 1000 cards, 1000 passwords (can be customized to support ID card or Mifare Card), support 1 group of door open relay, 1 group of door sensor, 1 group of alarm output, support U disk backup data. Chinese, English (other languages can be customized) (RS485 network connection host can be used as fingerprint head)
Product advantages:
1. Living fingerprints
2. High-speed algorithm
3. Dual mode of fingerprint access controller and fingerprint card reader
4. Voice prompt
5. Independent operation without computer
Model: FC-A07E/M
Working Environment: Temperature: 0-70℃, Humidity: 20-80%
False Acceptance Rate: < 0.0001%
Rejection Rate: < 0.01%
Working Voltage: DC12V (9-14V)
Comparison Method: 1:N, 1:1
Working Mode: Access controller, fingerprint card reader (switch selection)
Registration Method: Fingerprint, password (can be customized to support ID card or Mifare card)
Fingerprint Collection Area: 16×14mm
Collection Angle Range: ±45°
Confirm Response Time: <1 second
Storage Capacity: 1000 fingerprints, 1000 cards, 1000 passwords
Communication Interface: RS485, USB
Controller Interface: Wiegand26/34
Dimensions: 89 X 89 X 33.5mm
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
