FC-198E How To Wiring?

2016-11-10 17:05

Details of the problem:

Hello, we have bought the FC-198E from your company, we install the device first time and want to know how to connect it, we bought is FC-198E access controller、FC-903 power supply and electric bolt lock.

Expert answer:

Thanks for your purchased. Please connect it according to the following picture.

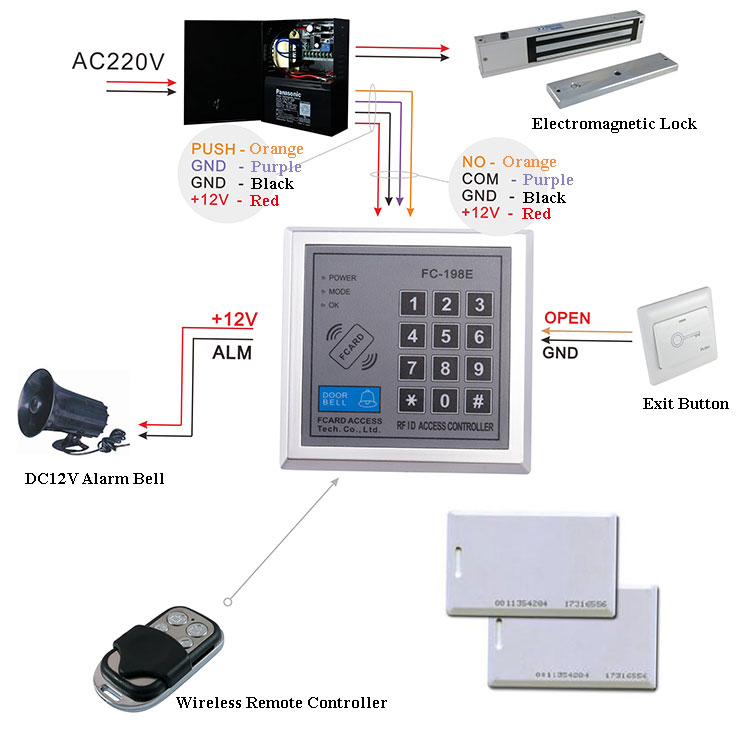

Access controller Wiring diagram

Can solve( 0 ) Can not be solved( 1 )
