FC-198E Standalone Access Controller How To Wiring?

2016-11-10 17:45

Details of the problem:

Hello, we have bought a set of FC-198E from your company and we use it at first time, can you give me some information to do reference? We bought is FC-198E Standalone Access Controller、12V Switch Power Supply and ElectricMagnetic Lock.

Expert answer:

Thanks for your purchased. Please connected according to the below way.

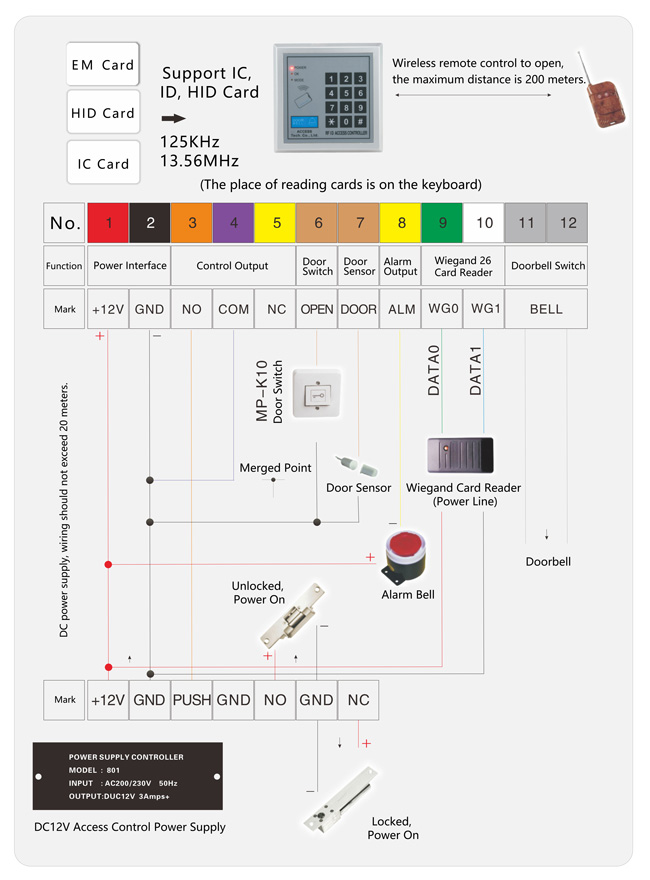

Access Controller Wiring

Can solve( 3 ) Can not be solved( 0 )
